Kiosk Printers

3inch

RX830-V80

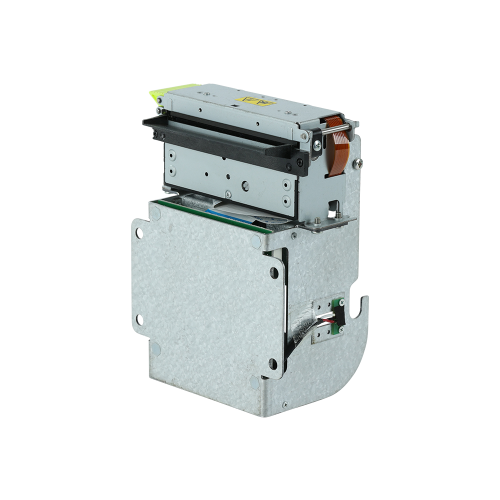

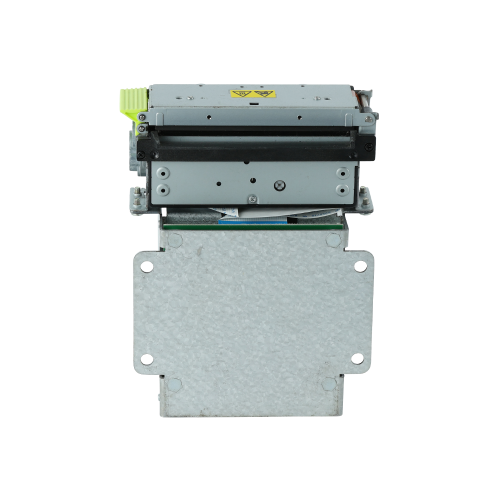

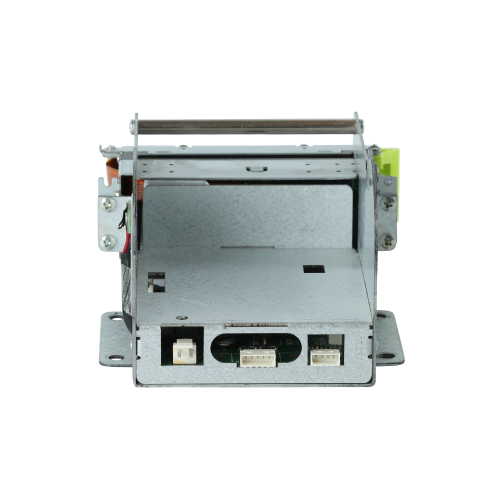

3-inch small-footprint Kiosk printer with a vertical design

Technical Sheet

Division	Content
Printing System	Line thermal printing
Cutting System	Partial / full (option)
Presenter	Available as an option
Bezel	Available as an option
Media	Thermal receipt paper
Paper width	79 ± 0.5 mm
Printing width	72 mm
Roll Diameter	80mm Max
Paper thickness	0.056~0.08mm [max 0.1]
Dots/line	567
Characters/line	18, 36, 48
Resolution	203 dpi, 8 dots/mm
Printing speed	Up to 200 mm/sec
Dimensions (W x L x H mm)	108.6 x 170.4 x 107.9
Weight (without paper)	600g
Interfaces	USB+Serial
Sensors	Paper presence, Black mark, Near paper end, Paper end, Printer head open, Cutter home
Voltage	24VDC - 110/240VAC adapter available
Current	1.7A (25% print ratio) ~ 8.5A (100% print ratio)
Print head life	150km
Cutter life	1 million cuts
Operating temperature	0~50°C
